Roland Fantom X6

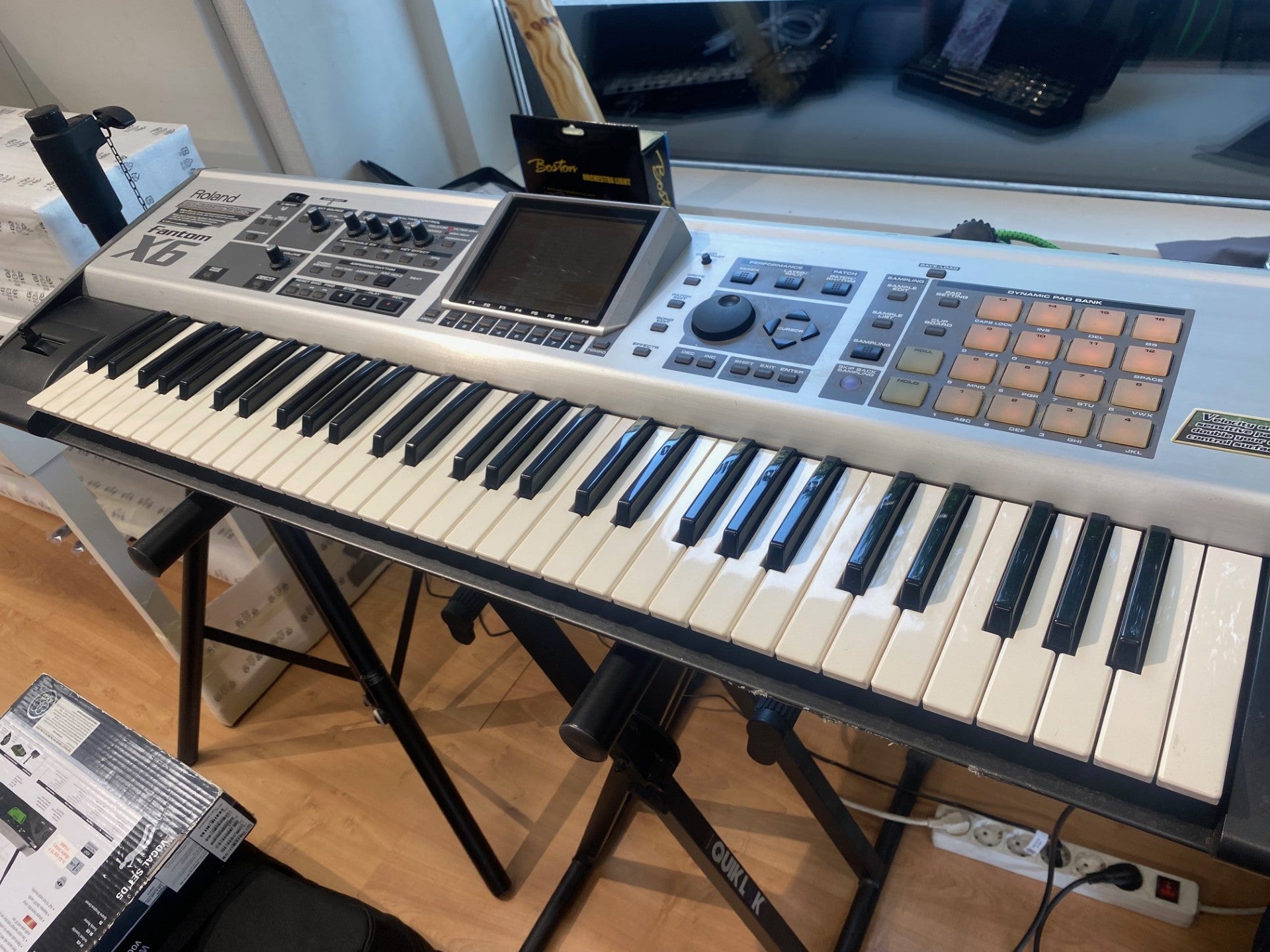

Siisti pidetty Fantom-X6 61 koskettimen Giga Workstation

Fantom X-sarjan kosketinsoittimet kuuluvat Giga-sarjaan. Soittimissa on lähes 1 gigatavu soundeja, kun ne ovat täydessä latingissa ja 128 äänen polyfonia. Syntikkaosan uusia soundeja on mm. upea 88 koskettimen stereona multisamplattu flyygeli. Soittimissa on neljä SRX-sarjan laajennuspaikkaa. Sampleriin voidaan asentaa 544 MT RAM-muistia, voit käyttää sitä vaikka digitaalisena tallentimena. X-sarjan soittimissa on ensimmäistä kertaa värilliset LCD-näytöt.

Fantom-X6: Audio Track Expanded (Conforms to General MIDI 2)Keyboard61 keys (with velocity and channel aftertouch)Maximum Polyphony128 voices (shared with the sampling section)Multitimbral Parts16 PartsStandard Wave Memory128 M bytes (16-bit linear equivalent)Standard Waveforms1,480Preset MemoryPatches: 1,152+ 256 (GM2)
Rhythm Sets: 40 + 9 (GM2)
Performances: 64User MemoryPatches: 256
Sample Patches: 2,000
Rhythm Sets: 32
Performances: 64Card Memory (PC card)Patches: 256
Sample Patches: 7,000
Rhythm Sets: 32
Performances: 64EffectsMulti-Effects: 3 systems, 78 types
Chorus: 3 types
Reverb: 5 types
Input Effects: 6 types
Mastering Effects: 3-band compressorSampling Data Format16-bit linear (File Type: .WAV/.AIFF)Sampling Frequency44.1 kHz (fixed)Maximum Sampling TimeStandard (32 MB)
mono:360 sec. approx., stereo: 180 sec. approx.
When expanded with DIMM (544 MB)
mono: 102 min. approx., stereo: 51 min. approx.Number of SamplesUser memory: 2,000
Card memory: 7,000 (PC card)Sequencer TracksPhrase tracks (16 MIDI channels per track): 16
Pattern track (16 MIDI channels per track): 1
Audio Track: 8 stereo
Tempo track: 1
Beat track: 1
* The Pattern Track can hold up to 100 patterns.Sequencer Resolution480 TPQNSequencer Tempo5 - 300Sequencer Note Capacityapprox. 400,000 notesSequencer Song Length9,998 measuresSequencer Recording MethodRealtime recording, Step recordingArpeggiatorPreset: 128
User: 128Rhythm PatternPreset: 256 (32 groups)
User: 256 (32 groups)Chord MemoryPreset: 64
User: 64DisplayGraphic 320 x 240 dots backlit LCD (Color)Dynamic Pads16 pads, Velocity and Aftertouch sensitiveControllersPitch Bend/Modulation Lever
Control Knob x 4
Assignable Switch x 2
D Beam ControllerConnectorsHeadphones Jack
A (MIX) Output Jacks (L/MONO, R): 1/4 inch TRS phone type
B Output Jacks (L, R): 1/4 inch phone type
Input Jacks (L/MONO/MIC, R): 1/4 inch phone type
[X6/X7/X8] Hold Pedal Jack (Half Pedal recognition)
[X6/X7/X8] Control Pedal Jack (assignable)
MIDI Connectors (IN, OUT, THRU)
USB Connector (supports file transfer (mass storage class) and MIDI)
Digital Audio Interface (COAXIAL INPUT/OUTPUT)
AC InletExpansion SlotsExpansion of waveforms and patchs for the internal sound generator
SRX expansion boards: 4 slots
Expansion of sampling memory
DIMM: 1 slot (supports 128 MB, 256 MB, 512 MB (3.3 V))External Storage DevicePC card: 1 slot (supports SmartMedia and CompactFlash using a PC card adapter)Power SupplyAC 117 V, AC 230 V, AC 240 V (50/60 Hz)
AC 220 V (60 Hz)Power Consumption17WAccessoriesHandbook
Owner's Manual
Sound/Parameter List
Sample Data (Audio) CD
CD-ROM (Editor (Patch, Sample, Multi-sample), Librarian, S-700 series sample converter, USB MIDI driver)
Power CordOptionsWave Expansion Board: SRX Series
Keyboard Stand: KS-12
Pedal Switch: DP series
Foot Switch: BOSS FS-5U
Expression Pedal: EV-5Size and Weight ( Dimensions )
